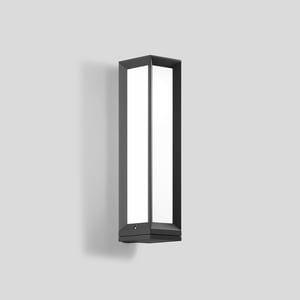

Unshielded wall luminaires with a square layout. On account of their design, these luminaires are suitable in particular for installation on pillars, wall pillars and the front surfaces of external walls. Wall luminaires for the illumination of impressive entrances, colonnades and wall surfaces as well as for private houses. Used singly or in groups, these are excellent design elements for a multitude of lighting applications.
Technical data
Protection class IP 65 BEGA Thermal Management®
Cast aluminium, aluminium and stainless steel BEGA Unidure® coating technology white synthetic cover
A clearance of approximately 70% of the total height B is required above the luminaire for maintenance work.
On/off or DALI-controllable power supply units
20-year availability guarantee for replacement parts and LED modules
| LED | PSU | A | B | C | D | |||
|---|---|---|---|---|---|---|---|---|
| 24 504 K3 | 11.7 W | 766 lm | on/off | 120 | 450 | 160 | 40 | |
| 24 505 K3 | 14.3 W | 1206 lm | on/off | 140 | 500 | 180 | 90 | |
| 24 506 K3 | 21.6 W | 1787 lm | DALI | 160 | 650 | 200 | 90 |
